EV Series Excess Flow Valves

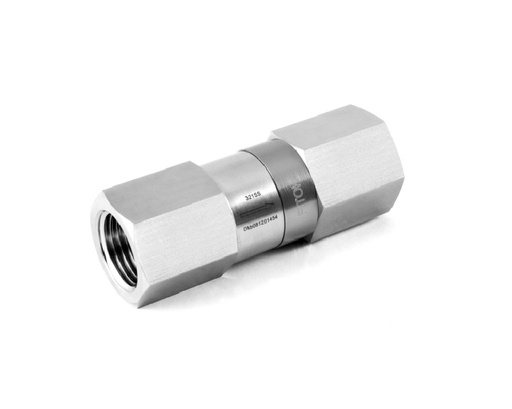

EVSS-NS8-FNS8-8
Excess Flow Valve, Body: 316SS/A479, MWP: 4,900psig, O-ring: FKM, Seal Ring: PTFE, Conn. : 1/2in. (M)NPT x 1/2in. (F)NPT, Cv:1.1, Water Flow Trip Range: 42.3 to 56.3 L/min
EVSS-FNS4-4
Excess Flow Valve, Body: 316SS/A479, MWP: 6,000psig, O-ring: FKM, Seal Ring: PTFE, Conn. : 1/4in. x 1/4in. (F)NPT, Cv:0.5, Water Flow Trip Range: 14.7 to 21.9 L/min
EVSS-ML6-4
Excess Flow Valve, Body: 316SS/A479, MWP: 6,000psig, O-ring: FKM, Seal Ring: PTFE, Conn.: 6mm x 6mm Tube OD, 2-Ferrule, Cv:0.5, Water Flow Trip Range: 14.7 to 21.9 L/min
EVSS-FL6-6
Excess Flow Valve, Body: 316SS/A479, MWP: 6,000psig, O-ring: FKM, Seal Ring: PTFE, Conn.: 3/8in. x 3/8in. Tube OD, 2-Ferrule, Cv:1.1, Water Flow Trip Range: 31.0 to 37.8 L/min
EVSS-FL8-8
Excess Flow Valve, Body: 316SS/A479, MWP: 6,000psig, O-ring: FKM, Seal Ring: PTFE, Conn.: 1/2in. x 1/2in. Tube OD, 2-Ferrule, Cv
EVSS-FL4-4
Excess Flow Valve, Body: 316SS/A479, MWP: 6,000psig, O-ring: FKM, Seal Ring: PTFE, Conn.: 1/4in. x 1/4in. Tube OD, 2-Ferrule, Cv
EVSS-FNS8-8
Excess Flow Valve, Body: 316SS/A479, MWP: 4,900psig, O-ring: FKM, Seal Ring: PTFE, Conn.: 1/2in. x 1/2in. (F)NPT, Cv:1.1, Water
EVSS-ML10-6
Excess Flow Valve, Body: 316SS/A479, MWP: 6,000psig, O-ring: FKM, Seal Ring: PTFE, Conn.: 10mm x 10mm Tube OD, 2-Ferrule, Cv:1.1
EVSS-NS8-FL8-8
Excess Flow Valve, Body: 316SS/A479, MWP: 6,000psig, O-ring: FKM, Seal Ring: PTFE, Conn.: 1/2in. (M)NPT x 1/2in. Tube OD, 2-Ferr
EVSS-NS8-8
Excess Flow Valve, Body: 316SS/A479, MWP: 5,300psig, O-ring: FKM, Seal Ring: PTFE, Conn. : 1/2in. x 1/2in. (M)NPT, Cv:1.1, Water
EVSS-NS4-FNS4-4
Excess Flow Valve, Body: 316SS/A479, MWP: 6,000psig, O-ring: FKM, Seal Ring: PTFE, Conn. : 1/4in. (M)NPT x 1/4in. (F)NPT, Cv:0.5
EVSS-ML8-6
Excess Flow Valve, Body: 316SS/A479, MWP: 6,000psig, O-ring: FKM, Seal Ring: PTFE, Conn.: 8mm x 8mm Tube OD, 2-Ferrule, Cv:1.1,
EVSS-ML12-8
Excess Flow Valve, Body: 316SS/A479, MWP: 6,000psig, O-ring: FKM, Seal Ring: PTFE, Conn.: 12mm x 12mm Tube OD, 2-Ferrule, Cv:1.1
