BV Series Ball Valves
BVSS-NS6-FL6-06
Ball Valve, Body: 316SS, MWP: 1,500psig, Seat: PTFE, Conn.: 3/8in. (M)NPT x 3/8in. Tube OD, 2-Ferrule, Orifice:4.7mm, Cv:2.34, Black Nylon Handle
BVSS-FNS4-05-3
Ball Valve, Body: 316SS, MWP: 1,500psig (Bottom Inlet), Seat: PTFE, Conn.: 3Ports x 1/4in. (F)NPT, Orifice:4.7mm, Cv:0.7, Black Nylon Handle, 3-Way
BVSS-ML12-06
Ball Valve, Body: 316SS, MWP: 1,500psig, Seat: PTFE, Conn.: 12mm x 12mm Tube OD, 2-Ferrule, Orifice:6.4mm, Cv:2.34, Black Nylon Handle
BVSS-FRT8-10-3
CF8M, BV Series Ball Valve, Multipurpose, PTFE Seats, 1/2 Female ISO Tapered Thread, 1500psig(103bar), -65°F to 350°F( -54°C to 177°C), 0.37" Orifice, 3-way

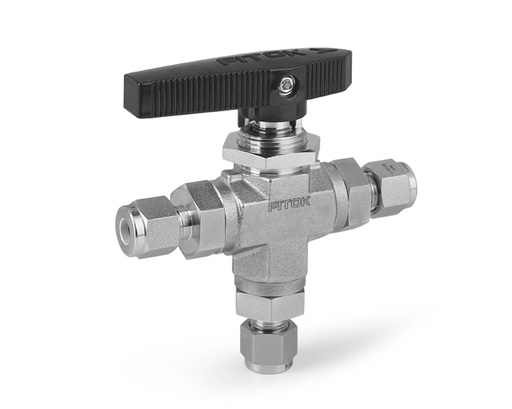

BVSS-ML14-10-3
CF8M, BV Series Ball Valve, Multipurpose, PTFE Seats, 14 mm Tube Fitting, 1500psig(103bar), -65°F to 350°F( -54°C to 177°C), 0.37" Orifice, 3-way
BVSS-ML12-10-3
CF8M, BV Series Ball Valve, Multipurpose, PTFE Seats, 12 mm Tube Fitting, 1500psig(103bar), -65°F to 350°F( -54°C to 177°C), 0.37" Orifice, 3-way
BVSS-ML10-06-3
CF8M, BV Series Ball Valve, Multipurpose, PTFE Seats, 10 mm Tube Fitting, 1500psig(103bar), -65°F to 350°F( -54°C to 177°C), 0.19" Orifice, 3-way
BVSS-ML8-06-3
CF8M, BV Series Ball Valve, Multipurpose, PTFE Seats, 8 mm Tube Fitting, 1500psig(103bar), -65°F to 350°F( -54°C to 177°C), 0.19" Orifice, 3-way
BVSS-FL6-06-3
CF8M, BV Series Ball Valve, Multipurpose, PTFE Seats, 3/8" FITOK, 1500psig(103bar), -65°F to 350°F( -54°C to 177°C), 0.19" Orifice, 3-way
BVSS-FL4-05-3
CF8M, BV Series Ball Valve, Multipurpose, PTFE Seats, 1/4" Tube Fitting, 1500psig(103bar), -65°F to 350°F( -54°C to 177°C), 0.19" Orifice, 3-way

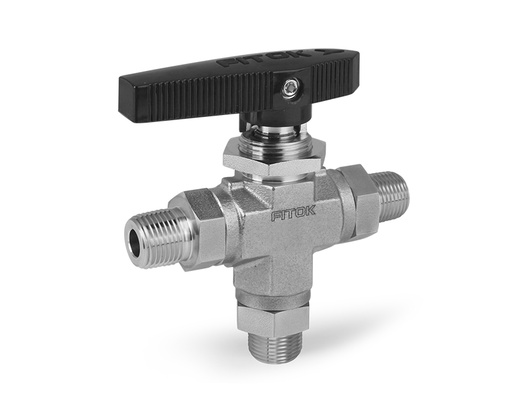

BVSS-NS4-04-3
CF8M, BV Series Ball Valve, Multipurpose, PTFE Seats, 1/4 Male NPT, 1500psig(103bar), -65°F to 350°F( -54°C to 177°C), 0.12" Orifice, 3-way
BVSS-FNS2-04-3
CF8M, BV Series Ball Valve, Multipurpose, PTFE Seats, 1/8 Female NPT, 1500psig(103bar), -65°F to 350°F( -54°C to 177°C), 0.12" Orifice, 3-way
BVSS-ML3-02-3
CF8M, BV Series Ball Valve, Multipurpose, PTFE Seats, 3 mm Tube Fitting, 1500psig(103bar), -65°F to 350°F( -54°C to 177°C), 0.09" Orifice, 3-way
BVSS-FL2-02-3
CF8M, BV Series Ball Valve, Multipurpose, PTFE Seats, 1/8" Tube Fitting, 1500psig(103bar), -65°F to 350°F( -54°C to 177°C), 0.09" Orifice, 3-way

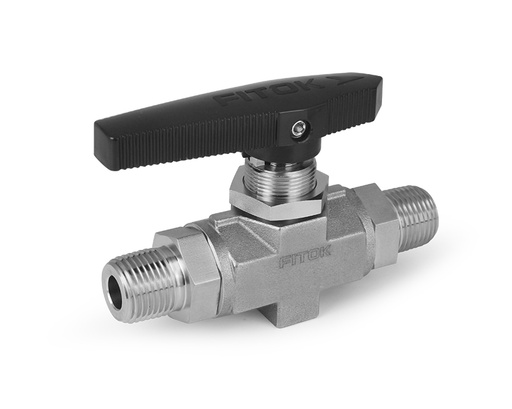

BVSS-NS8-10
CF8M, BV Series Ball Valve, Multipurpose, PTFE Seats, 1/2 Male NPT, 1500psig(103bar), -65°F to 350°F( -54°C to 177°C), 0.41" Orifice, Straight

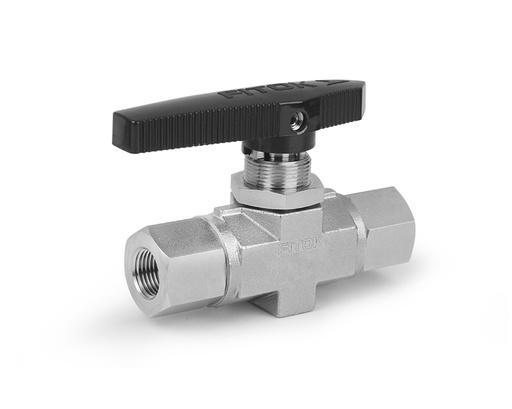

BVSS-FNS8-10
CF8M, BV Series Ball Valve, Multipurpose, PTFE Seats, 1/2 Female NPT, 1500psig(103bar), -65°F to 350°F( -54°C to 177°C), 0.41" Orifice, Straight
BVSS-FRP8-10
CF8M, BV Series Ball Valve, Multipurpose, PTFE Seats, 1/2 Female ISO Parallel Thread, 1500psig(103bar), -65°F to 350°F( -54°C to 177°C), 0.41" Orifice, Straight
BVSS-FNS6-10
CF8M, BV Series Ball Valve, Multipurpose, PTFE Seats, 3/8 Female NPT, 1500psig(103bar), -65°F to 350°F( -54°C to 177°C), 0.41" Orifice, Straight

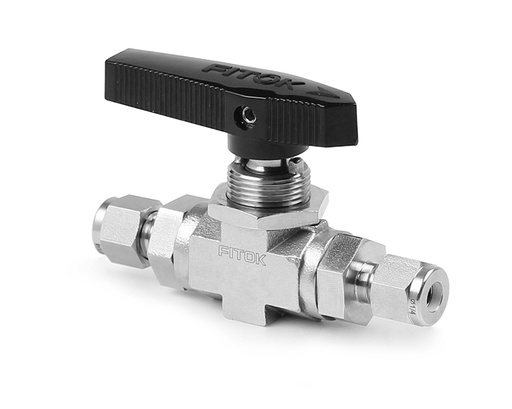

BVSS-FRP6-10
CF8M, BV Series Ball Valve, Multipurpose, PTFE Seats, 3/8 Female ISO Parallel Thread, 1500psig(103bar), -65°F to 350°F( -54°C to 177°C), 0.41" Orifice, Straight
BVSS-ML14-10
CF8M, BV Series Ball Valve, Multipurpose, PTFE Seats, 14 mm Tube Fitting, 1500psig(103bar), -65°F to 350°F( -54°C to 177°C), 0.41" Orifice, Straight
