BP Series Ball Valves

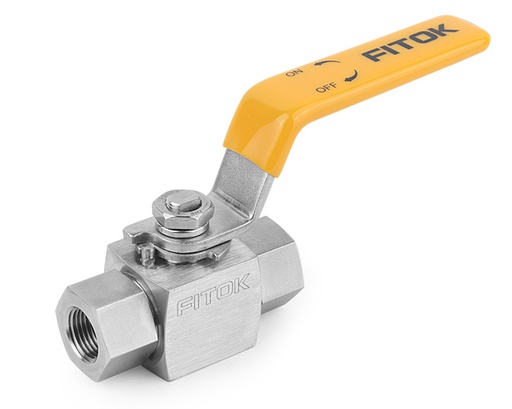

BPSS-FNS16-P19
316 SS, BP Series Ball Valve,bar Stock, PEEK Seats, 1 Female NPT, 6000psig(414bar), -40°F to 450°F( -40°C to 232°C), 0.71" Orifice, Straight

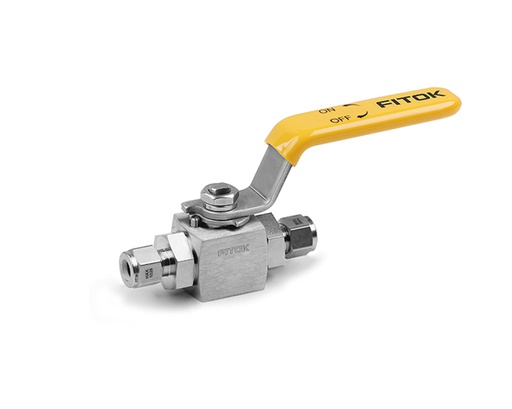

BPSS-ML22-P13
316 SS, BP Series Ball Valve,bar Stock, PEEK Seats, 22mm Tube Fitting, 4900psig(338bar), -40°F to 450°F( -40°C to 232°C), 0.50" Orifice, Straight
BPSS-UMB22-P13
Ball Valve, Body: 316SS, MWP: 6,000psig, Seat: PEEK, Conn.: 22mm x 22mm BW Bulge Nipple with Union Nut, Orifice:12.7mm, Cv:10, SS Lever Handle
BPSS-FNS8-10-3
316 SS, BP Series Ball Valve,bar Stock, PVDF Seats, 1/2 Female NPT, 4000psig(276bar), -40°F to 325°F( -40°C to 163°C), 0.39" Orifice, 3-way, Vertical Pattern
BPSS-FL6-10-3
316 SS, BP Series Ball Valve,bar Stock, PVDF Seats, 3/8" Tube Fitting, 4000psig(276bar), -40°F to 325°F( -40°C to 163°C), 0.28" Orifice, 3-way, Vertical Pattern

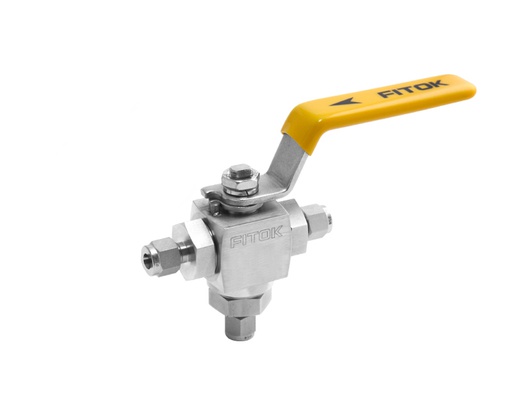

BPSS-ML10-10-3
316 SS, BP Series Ball Valve,bar Stock, PVDF Seats, 10 mm Tube Fitting, 4000psig(276bar), -40°F to 325°F( -40°C to 163°C), 0.28" Orifice, 3-way, Vertical Pattern
BPSS-ML20-19
316 SS, BP Series Ball Valve,bar Stock, PVDF Seats, 20mm Tube Fitting, 5000psig(345bar), -40°F to 325°F( -40°C to 163°C), 0.71" Orifice, Straight
BPSS-NS8-10
316 SS, BP Series Ball Valve,bar Stock, PVDF Seats, 1/2 Male NPT, 6000psig(414bar), -40°F to 325°F( -40°C to 163°C), 0.39" Orifice, Straight
BPSS-NS6-10
316 SS, BP Series Ball Valve,bar Stock, PVDF Seats, 3/8 Male NPT, 6000psig(414bar), -40°F to 325°F( -40°C to 163°C), 0.39" Orifice, Straight

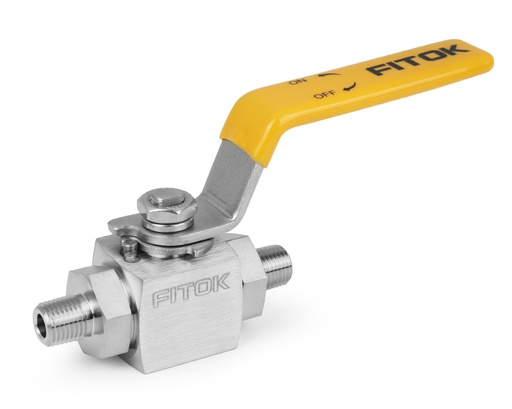

BPSS-NS4-10
316 SS, BP Series Ball Valve,bar Stock, PVDF Seats, 1/4 Male NPT, 6000psig(414bar), -40°F to 325°F( -40°C to 163°C), 0.28" Orifice, Straight
BPSS-FNS6-10
316 SS, BP Series Ball Valve,bar Stock, PVDF Seats, 3/8 Female NPT, 6000psig(414bar), -40°F to 325°F( -40°C to 163°C), 0.39" Orifice, Straight
BPSS-FNS4-10
316 SS, BP Series Ball Valve,bar Stock, PVDF Seats, 1/4 Female NPT, 6000psig(414bar), -40°F to 325°F( -40°C to 163°C), 0.39" Orifice, Straight
BPSS-FL8-10
316 SS, BP Series Ball Valve,bar Stock, PVDF Seats, 1/2" Tube Fitting, 6000psig(414bar), -40°F to 325°F( -40°C to 163°C), 0.39" Orifice, Straight
BPSS-FL6-10
316 SS, BP Series Ball Valve,bar Stock, PVDF Seats, 3/8" Tube Fitting, 6000psig(414bar), -40°F to 325°F( -40°C to 163°C), 0.25" Orifice, Straight
BPSS-FL4-10
316 SS, BP Series Ball Valve,bar Stock, PVDF Seats, 1/4" Tube Fitting, 6000psig(414bar), -40°F to 325°F( -40°C to 163°C), 0.19" Orifice, Straight
BPSS-ML12-10
316 SS, BP Series Ball Valve,bar Stock, PVDF Seats, 12mm Tube Fitting, 6000psig(414bar), -40°F to 325°F( -40°C to 163°C), 0.39" Orifice, Straight
BPSS-ML8-10
316 SS, BP Series Ball Valve,bar Stock, PVDF Seats, 8mm Tube Fitting, 6000psig(414bar), -40°F to 325°F( -40°C to 163°C), 0.25" Orifice, Straight
BPSS-ML6-10
316 SS, BP Series Ball Valve,bar Stock, PVDF Seats, 6mm Tube Fitting, 6000psig(414bar), -40°F to 325°F( -40°C to 163°C), 0.19" Orifice, Straight
BPSS-FNS8-10
316 SS, BP Series Ball Valve,bar Stock, PVDF Seats, 1/2 Female NPT, 6000psig(414bar), -40°F to 325°F( -40°C to 163°C), 0.39" Orifice, Straight
BPSS-FL16-19
316 SS, BP Series Ball Valve,bar Stock, PVDF Seats, 1" Tube Fitting, 4700psig(324bar), -40°F to 325°F( -40°C to 163°C), 0.71" Orifice, Straight
